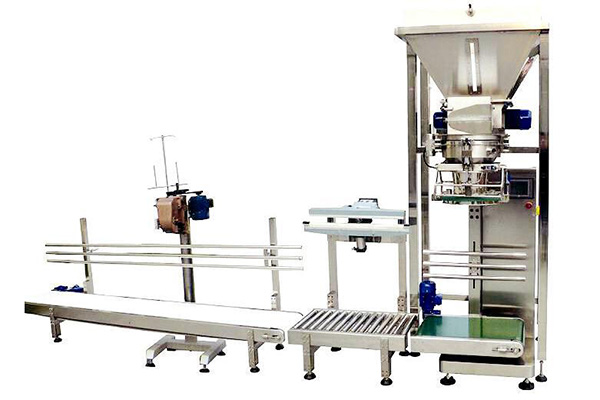

5-50kg automatic weighing packaging production line
5-50kg automatic weighing packaging production line
5-50kg automatic weighing packaging production line
  • Application range
  • Technical Parameters
  • Bag Sealing Type
  • Optional items
  • Equipment outline drawing
Characteristic

1.Using new-style producing & control system , together with high precision and high speed related weighing & control instruments , which has the advantage of multi-function , high stability and expansibility .completely adapt to the highly continuous and repeated industrial manufacture.
2.Hauing the function of over-dosing restraining ,wrap self-correcting and over-weight warning.
3.The machine is a set of highly electro-mechanical integrated device. Computer control system and imported high-precision weighing sensors are adopted . All the parts which directly contact with products are made of 304 stainless steel.
4.Bag grip device is changeable for fitting different bag size.
5.Chemical grand belt coveyor or PVC flight conveyor optional
6.Industrial bag sealing or seaming device optional

Measurement Method

Weighin Type(Packing container weighing)

Filling Mode

Weighing Type (Packing container weighing)

Posing Mode

5-25kg,10-50kg

Packaging Weight

±0.2%

Packaging Accuracy

4bags/min

Power supply

380 220V/50Hz

Compressde Air

6kg/m2    0.2 m3/min

Total power

2kw

Machine Bulk

1000mm×1000mm×2400mm

1): Nitrogen filling function
2): Venting device
3): Gusset device
4): Hook the hole cutter seat
5): Date Printer
